Ohlins

BM305 - ÖHLINS BMW F800GS Adventure Rear Shock Absorber

BM305 - ÖHLINS BMW F800GS Adventure Rear Shock Absorber

$1,262.00 USD
$1,262.00 USD
Sale Sold out

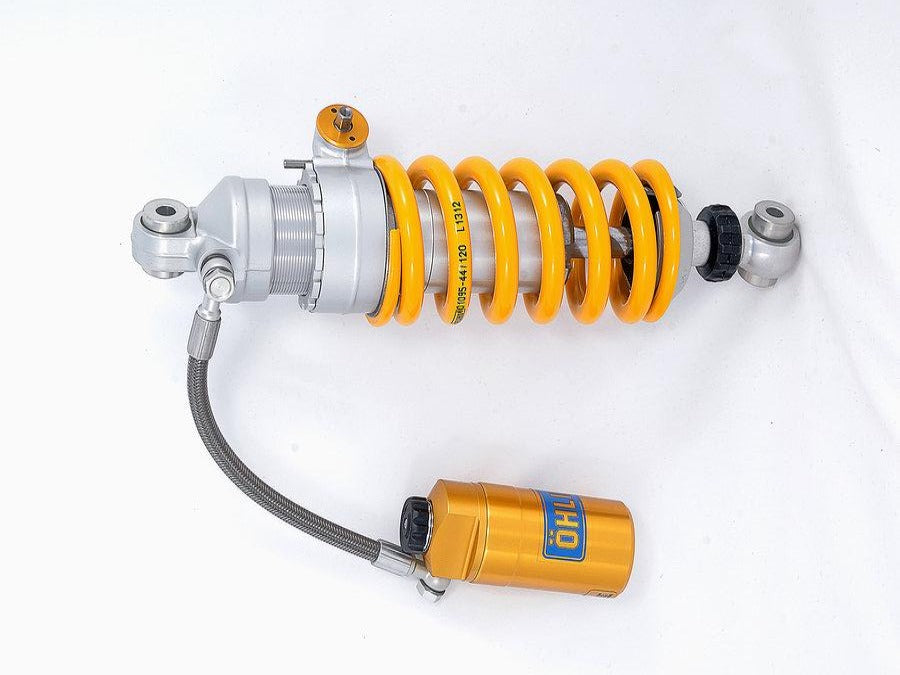

Rear shock absorber by Öhlins for BMW F800GS Adventure.

The classic monotube design of the Öhlins STX 46 shock absorber is a major upgrade to most bikes in the adventure segment. The design is well proven, features a large 46 mm piston delivering reliable performance in all possible environments.

📜 Owner's manual

🛠 Instructions for installation

Length: 429 mm
Stroke: 69 mm
Rate N/mm: 170 N/mm
Position: rear
Mounted spring: 01096-69

Type Code: S46HR1C1B

Single tube S: Single tube

Piston diameter 46: Piston diameter: 46 mm

Öhlins Motorcycle type H H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir.

Öhlins Motorcycle R1 rebound damping adjuster R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

Öhlins Motorcycle S36C1 compression damping adjuster C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.

Öhlins Motorcycle B B: Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.

APPLICATION:

BMW F800GS Adventure (2013 – 2018)
