BM489 - ÖHLINS BMW R nineT 1170 / Pure / Racer Rear Shock Absorber
BM489 - ÖHLINS BMW R nineT 1170 / Pure / Racer Rear Shock Absorber
Couldn't load pickup availability

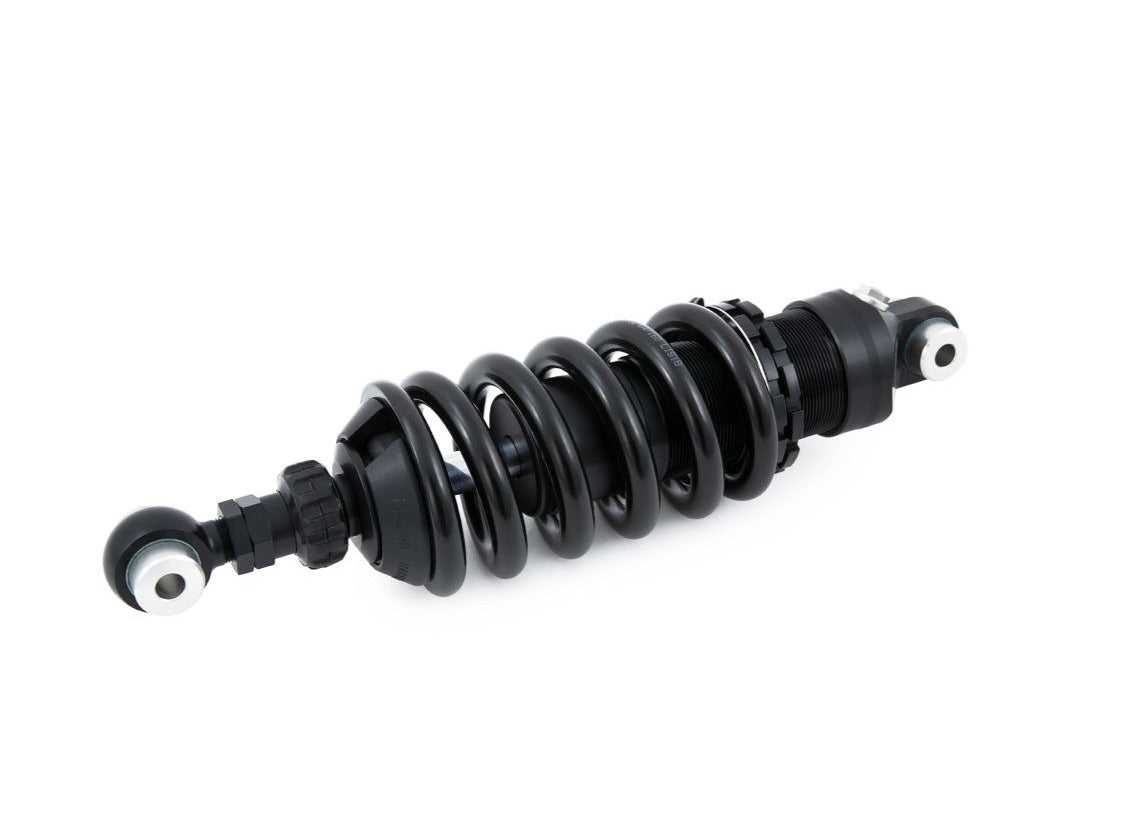

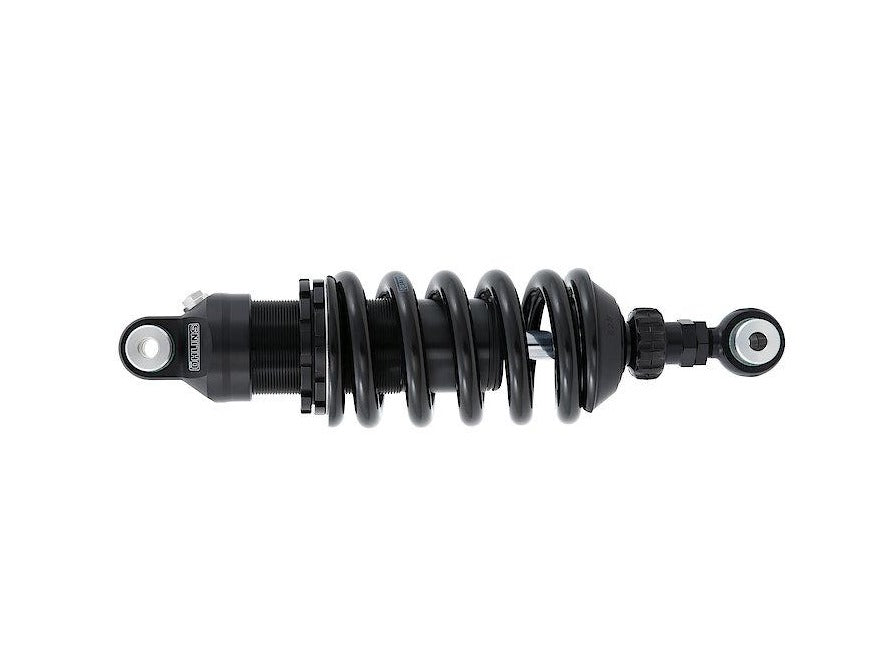

Rear shock absorber by Öhlins for BMW R nineT 1170 / Pure / Racer.
The STX 46 Street is based on our popular 46 mm shock absorber with divided piston and adjustable rebound damping, developed for naked sports bikes and street performance bikes. It features a large 46 mm main piston and an internal gas reservoir within the main body of the shock.
With adjustable damping you can change the behavior of the shock to suit your taste and even fit a hydraulic spring pre loader to change the stance of the bike. This is the perfect choice for the naked sports bike, or as well call it: Street Performance Line.
🛠 Instructions for installation
| Length: | 368mm +10mm /-2 mm |
|---|---|
| Stroke: | 47 mm |
| Rate N/mm: | 160 N/mm |
| Position: | rear |
| Mounted spring: | 21102-64 |
| Spring series: | 21102 |
| Mounting length min/max: | 366mm / 378mm |
Type Code: S46DR1L
S: Single tube
46: Piston diameter: 46 mm
D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

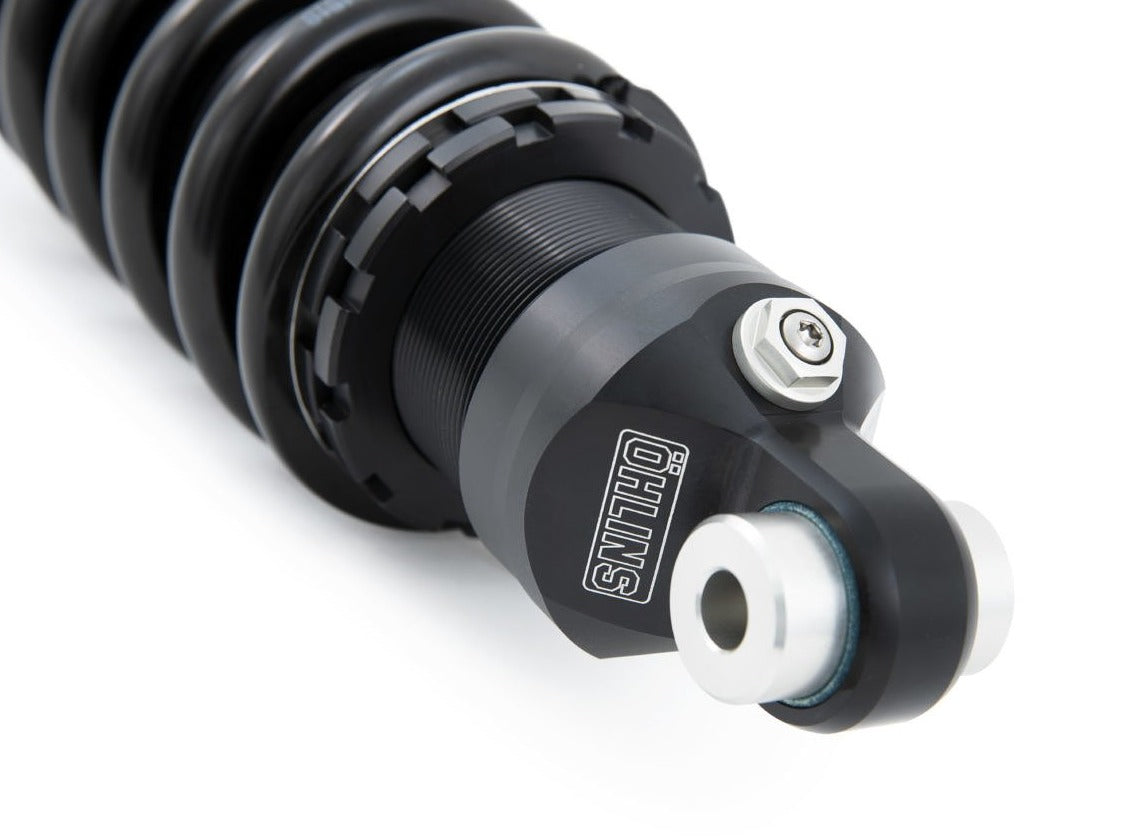

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
L:Adjustable length.
APPLICATION:
BMW R nineT 1170 (2017 – )
BMW R nineT Racer (2017 – )
BMW R nineT Pure (2017 – )
