BM678 - ÖHLINS BMW R1200GS Adventure (05/13) Rear Shock Absorber

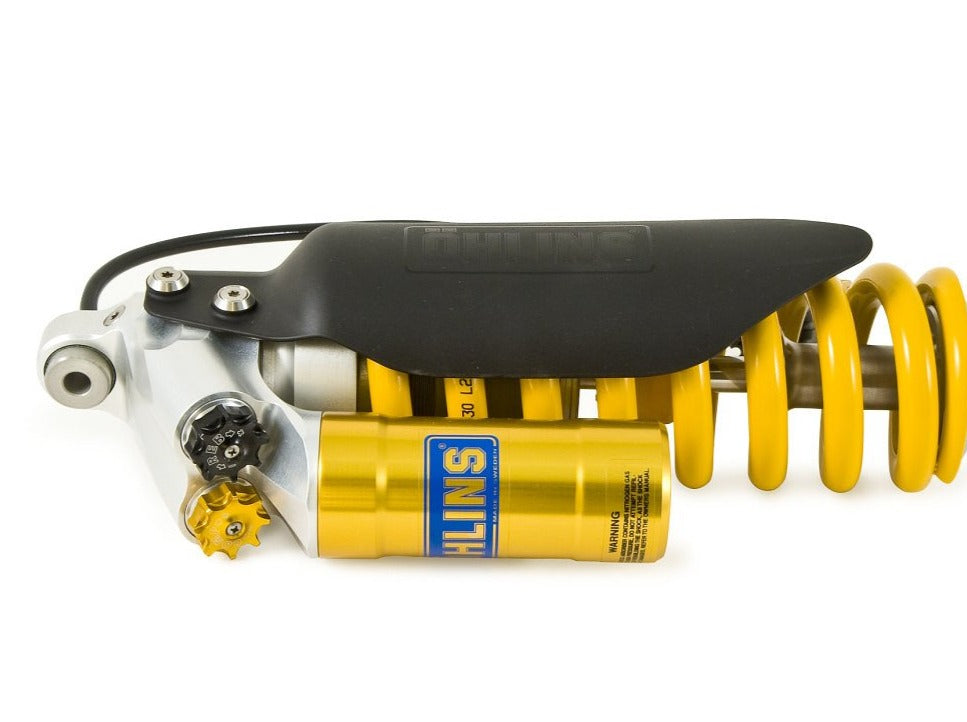

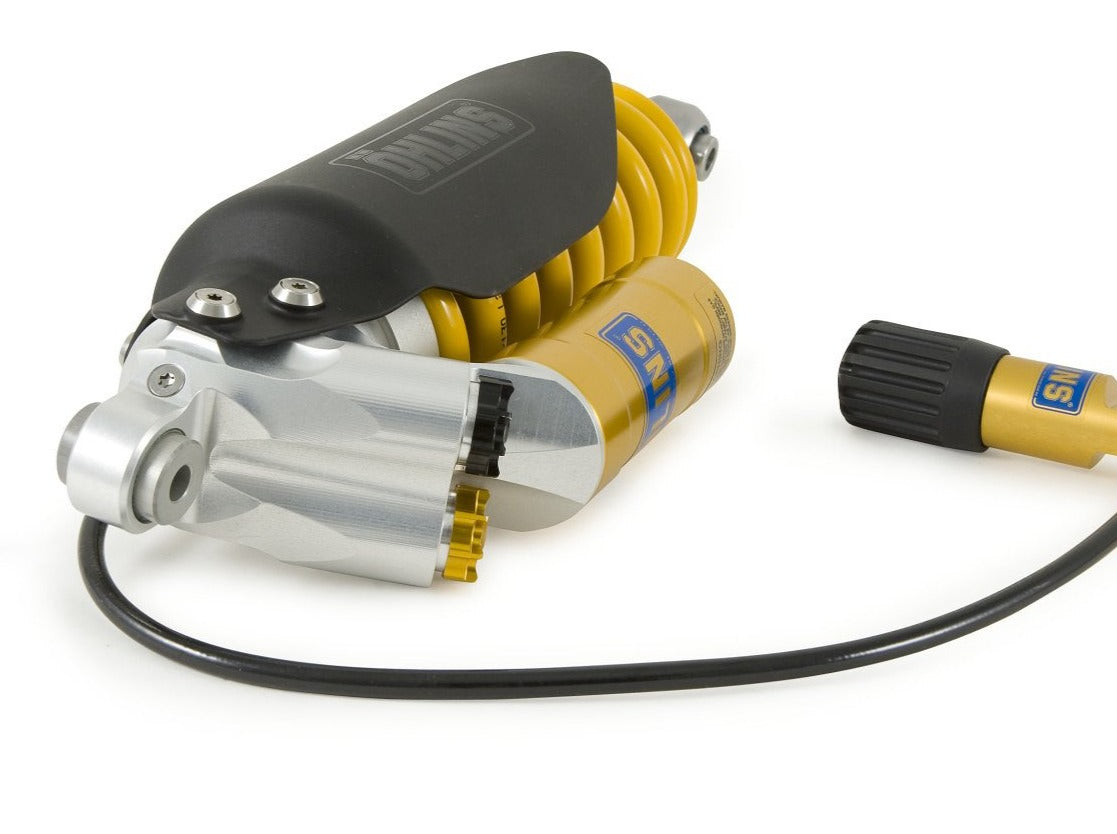

Rear shock absorber by Öhlins for BMW R1200GS Adventure.

Designed for the BMW R1200GS, the Öhlins TTX 36 and TTX 39 shock absorbers improve on feedback, control and comfort. Of course, both front and rear shocks benefit from all the TTX advantages, such as individually adjustable compression and rebound damping and eliminated risk of cavitation. Developed exclusively for the adventure segment, the rear TTX 39 shock is designed specifically to cope with the varying load conditions of on and off road use.

📜 Owner's manual

🛠 Instructions for installation

Type Code: T39PR1C1S

T: Twin tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

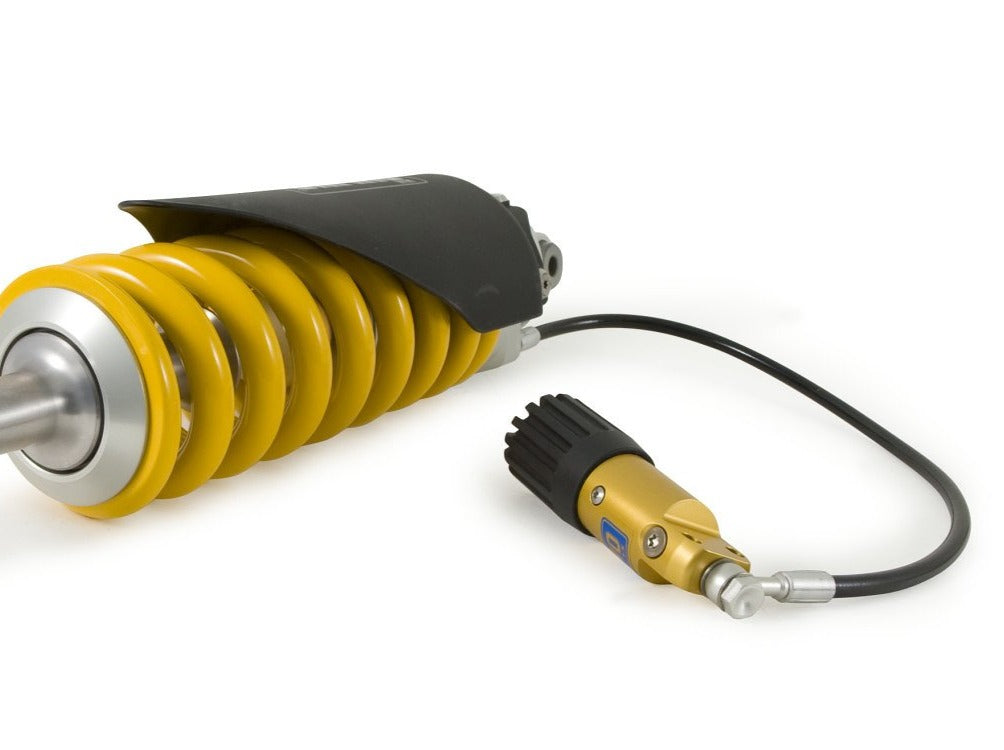

S: Hose mounted hydraulic spring preload adjuster.

APPLICATION:
