DU321 - ÖHLINS Ducati Monster Shock Absorber (STX 46 Street)

DU321 - ÖHLINS Ducati Monster Shock Absorber (STX 46 Street)

$718.00 USD
$718.00 USD
Sale Sold out

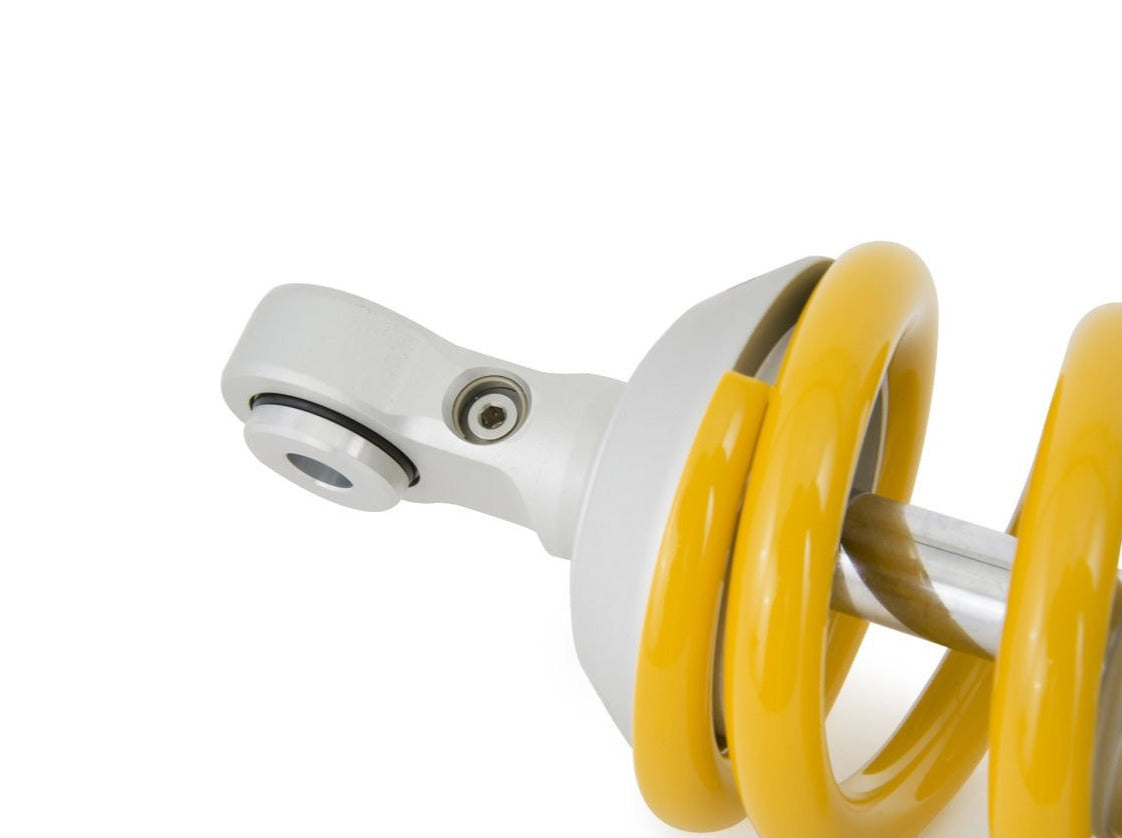

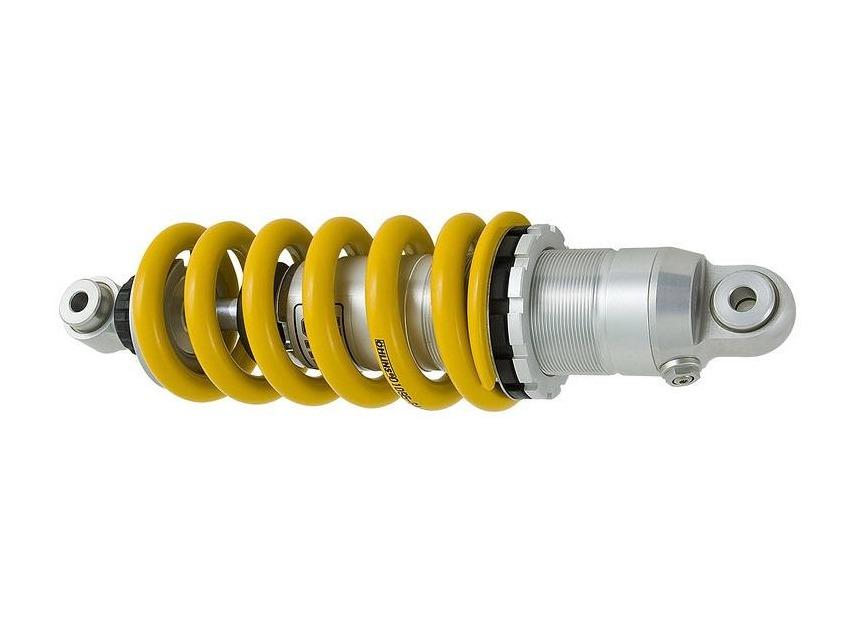

STX 46 Street shock absorber by Ohlins for Ducati Monster

Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.


📜 Owner's manual

🛠 Instructions for installation

    Length: 305 mm
    Stroke: 66 mm
    Rate N/mm: 100 N/mm
    Mounted spring: 01091-34

    Type Code: S46DR1

    Single tube S: Single tube

    Piston diameter 46: Piston diameter: 46 mm

    Öhlins Motorcycle type D D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

    Öhlins Motorcycle R1 rebound damping adjuster R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

    APPLICATION:

    Ducati MONSTER S4 (2000 – 2005)

    Ducati MONSTER 620 (2001 – 2005)

    Ducati MONSTER 750 (2001 – 2002)

    Ducati MONSTER 900 (2002 – 2005)

    Ducati MONSTER 800 (2003 – 2005)

    Ducati MONSTER 1000 (2003 – 2005)

    Ducati MONSTER S2R 1000 (2005 – 2009)

    Ducati MONSTER S2R 800 (2005 – 2008)

    Ducati MONSTER 695 (2006 – 2008)
