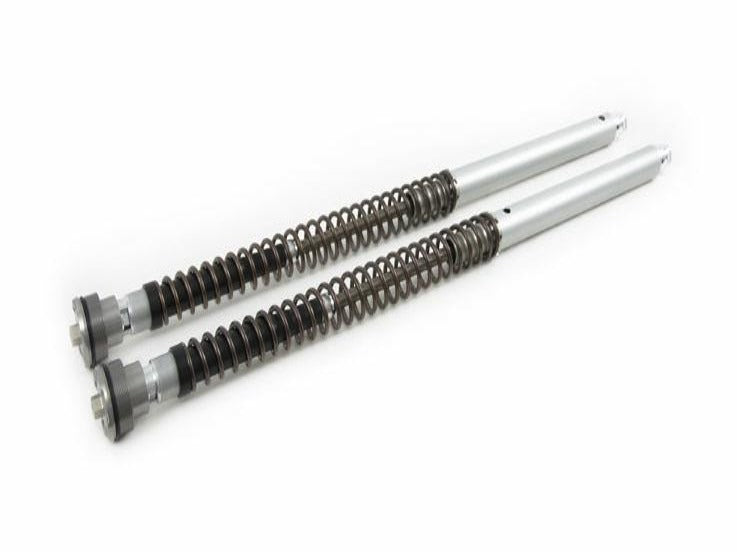

FKA116 - ÖHLINS Yamaha XT700 Ténéré World Raid (2022+) Front Fork Cartridge Kit (Adventure)

Front fork cartridge kit by Öhlins for Yamaha XT700 Ténéré World Raid.

Provides you with fully adjustable rebound and compression circuits, outstanding comfort and performance – You need to give it a go.

Different springs are available to cope with individual requirements, as well as an effective hydraulic stop inside the cartridge to prevent bottoming out. The compact design of the NIX cartridge means it will easily fit inside the upside-down original front forks of most medium-sized adventure bikes.

📜 Owner's manual

🛠 Instructions for installation

• Type Code: NIX30A
• Length: 944 mm
• Stroke: 230 mm
• Position: front
• Spring series: 08438-series
• Oil level mm: 140
• Oil volume mm: 450
• Packaging unit: pair


Notes:
We recommended to contact an authorized ÖHLINS dealer or Service Center for installation.

APPLICATION:
