FKS519 - ÖHLINS Yamaha MT-09 SP (2021+) Front Fork Cartridge Kit

Front fork cartridge kit by Öhlins for Yamaha MT-09 SP.

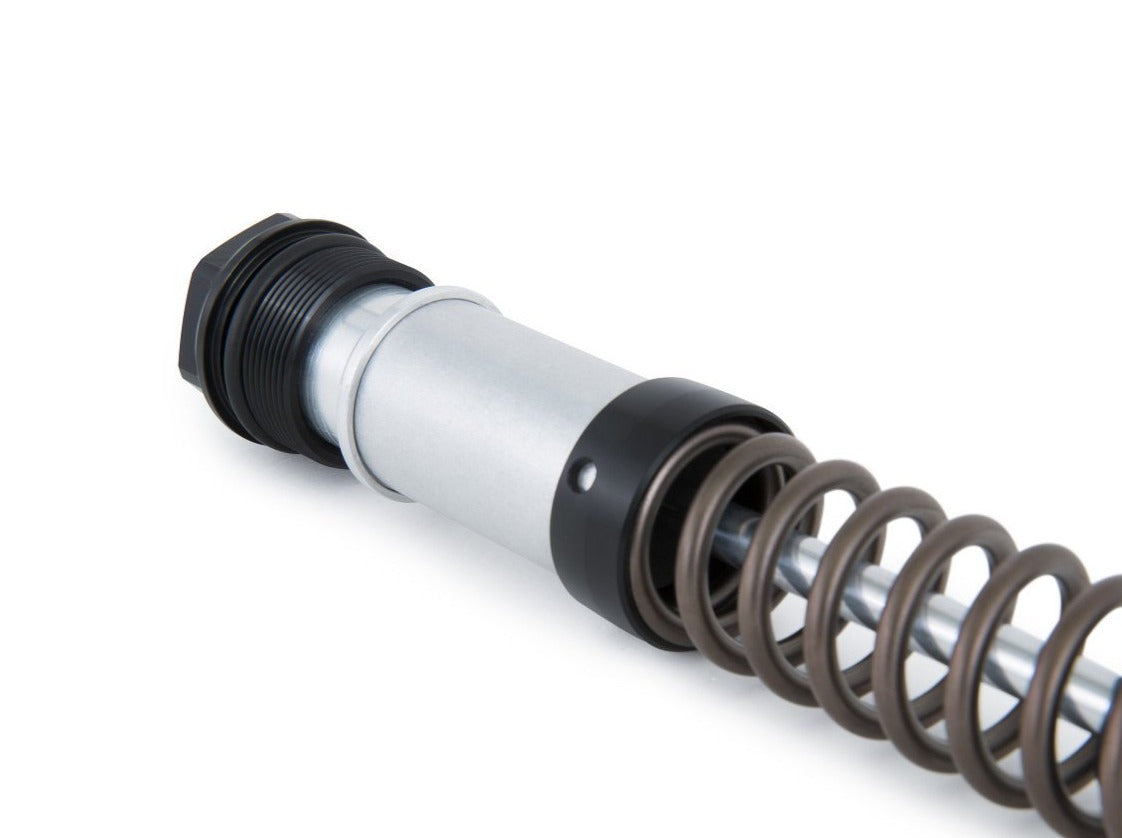

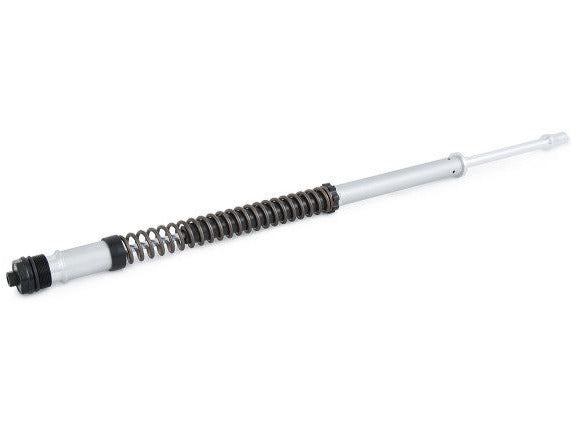

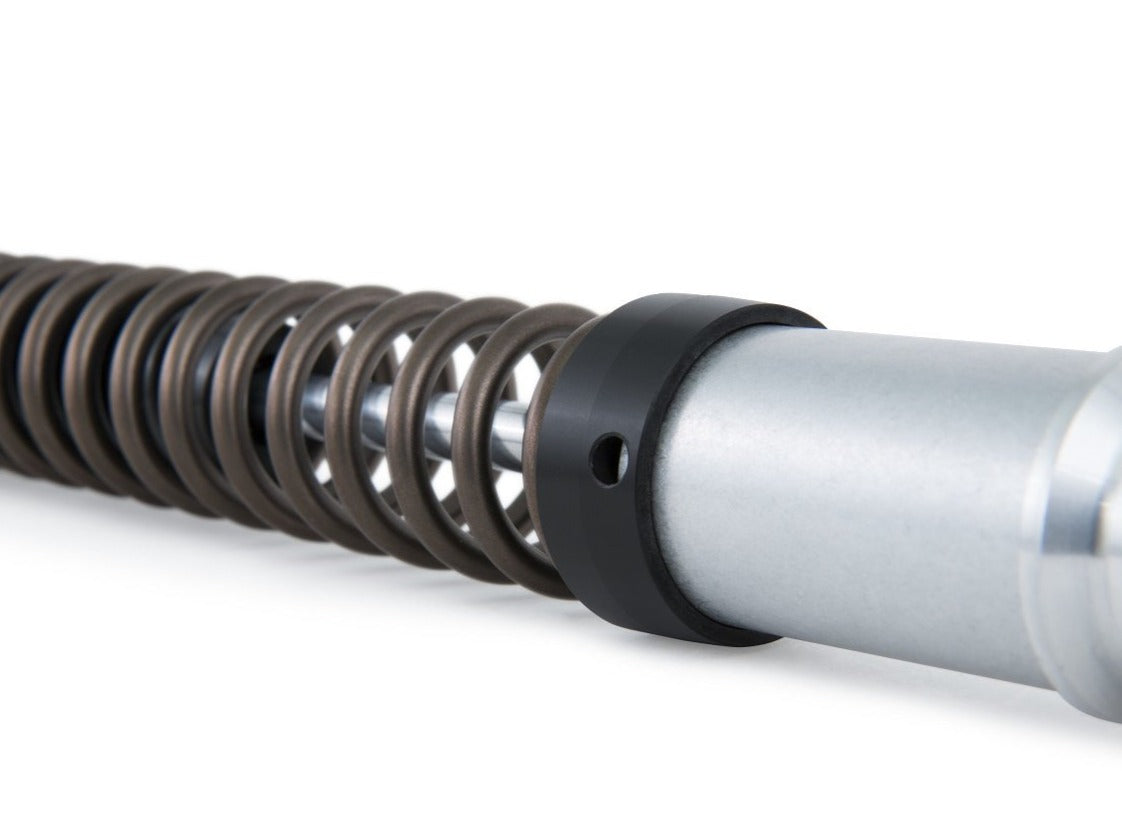

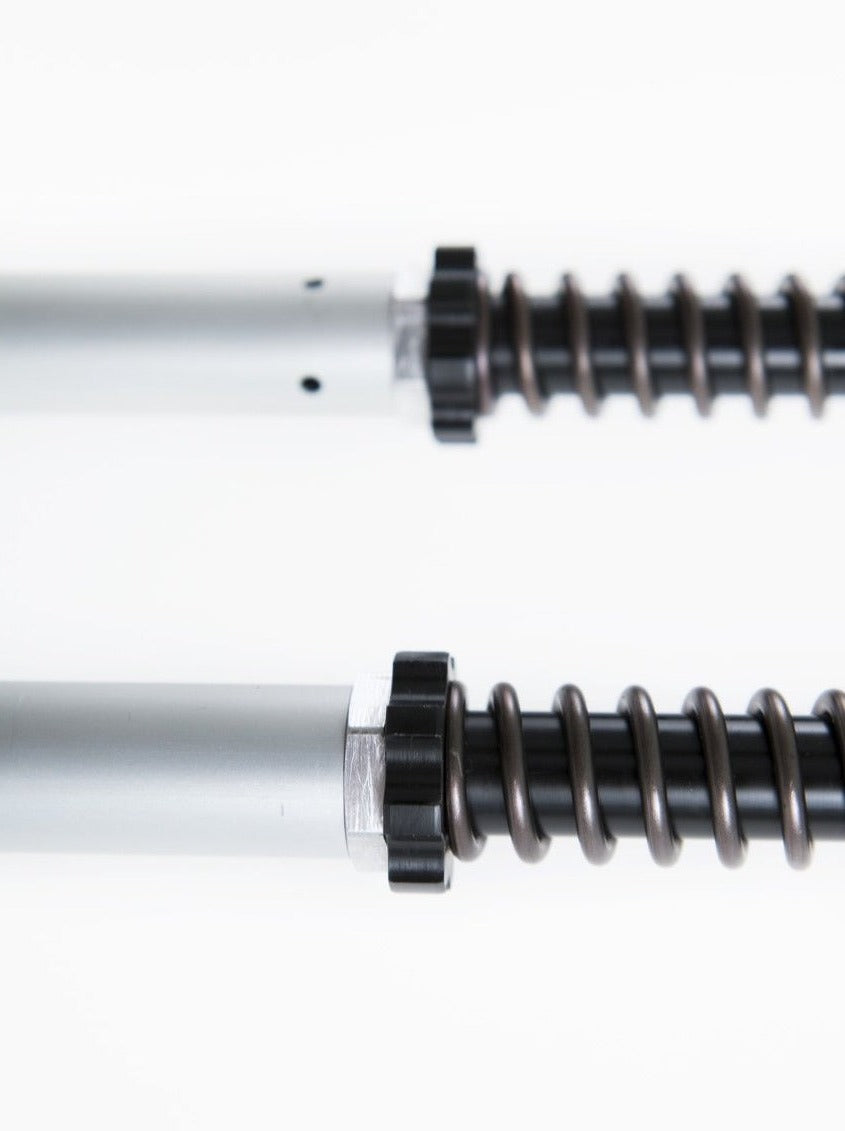

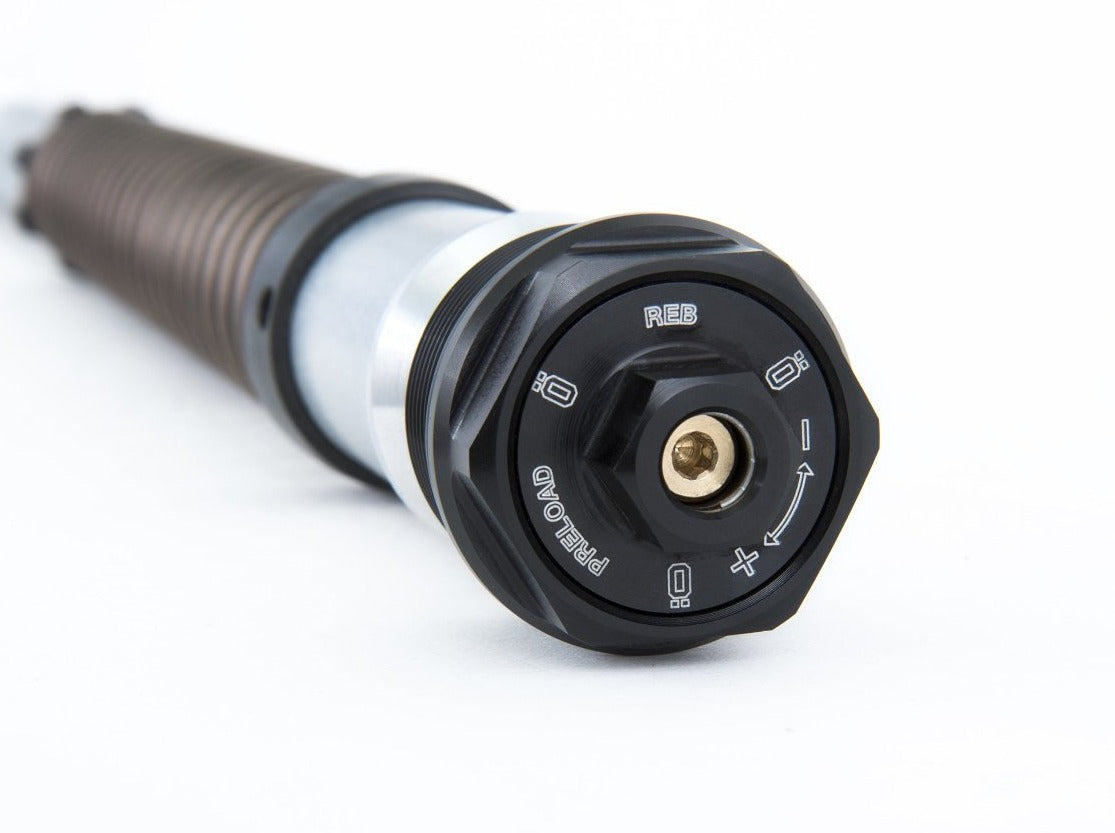

The Öhlins NIX 30 Street cartridge kit features new designed black top caps to give the bike a more subtle look. The “NIX” technology is developed from high level racing such as WSBK to deliver the utmost performance on road as well as on track. It fits bolt on in the standard fork legs and gives you adjustable compression and rebound damping separated in each leg, as well as preload adjustment, all accessible from the black top caps.

The Öhlins cartridge system fits into the original front fork, springs have to be ordered individually. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.

📜 Owner's manual

🛠 Instructions for installation

• Type Code: NIX30 Street
• Length: 757 mm
• Stroke: 130 mm
• Position: front
• Spring series: 08423-Serie
• Packaging unit: pair


Notes:

Springs have to be ordered separately.
It is recommended to contact an ÖHLINS Service Center for installation.

APPLICATION:

Yamaha MT-09 SP (2021 – )
