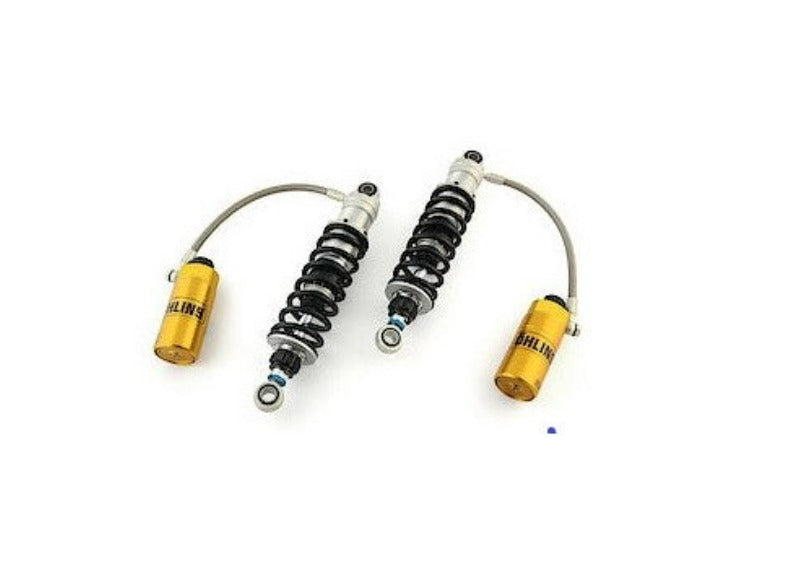

HD044 - ÖHLINS Harley-Davidson STX 36 Twin Shock Absorber (328 mm / black springs)

STX 36 Twin shock absorber by Ohlins for Harley-Davidson models.

Developed for bikes with twin shock absorbers, the Öhlins STX 36 is a classic monotube design, featuring all the classical Öhlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Öhlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	328 +5/-5 mm
Stroke:	90 mm
Rate N/mm:	25 N/mm
Position:	rear
Mounted spring:	00280-21
Packaging unit:	pair

Notes:

will not fit CVO's (large wiring plug in the way)

Type Code: S36HR1C1L

S: Single tube

36: Piston diameter: 36 mm

H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.

L: Adjustable length.

APPLICATION:

(Non monta su road glide / street glide)

Harley-Davidson Electra Glide Ultra Limited FLHTK (2014 – 2016)

Harley-Davidson Electra Glide Ultra Limited FLHTK (2017 – 2019)

Harley-Davidson Electra Glide Ultra Limited Low FLHTKL (2017 – 2019)

Harley-Davidson Ultra Classic Electra Glide CVO FLHTCUSE (2014 – 2016)

Harley-Davidson Ultra Glide Classic FLHTCU (2014 – 2016)
