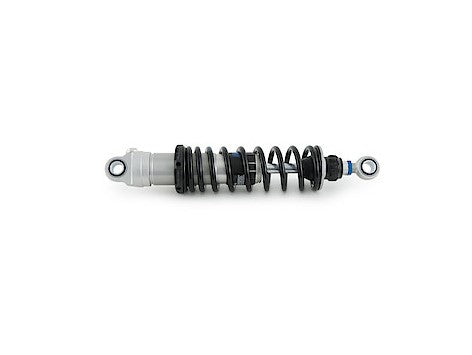

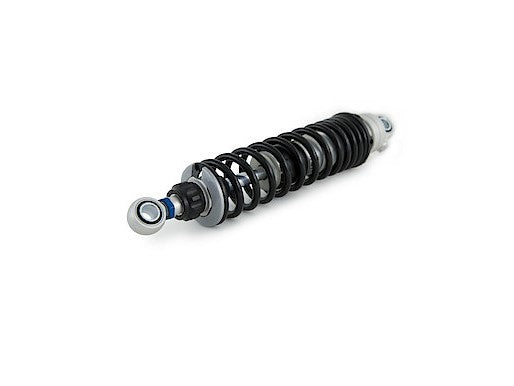

HD159 - ÖHLINS Harley-Davidson STX 36 Twin Shock Absorber (329 mm / black springs)

STX 36 Twin shock absorber by Ohlins for Harley-Davidson models.

Developed for bikes with twin shock absorbers, the Öhlins STX 36 is a classic monotube design, featuring all the classical Öhlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Öhlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	329 +5/-5 mm
Stroke:	77 mm
Rate N/mm:	25 N/mm
Mounted spring:	00280-21
Packaging unit:	pair

Type Code: S36DR1L

S: Single tube

36: Piston diameter: 36 mm

D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body

R1: Adjustable rebound damping on single tube shocks / adjuster wheel above the end eye

L: Adjustable length

APPLICATION:

Harley-Davidson Electra Glide Classic FI FLHTCI (FL1) (2001 – 2006)

Harley-Davidson Electra Glide Classic FLHTC (FL1) (2000 – 2006)

Harley-Davidson Electra Glide Classic FLHTC (FL2) (2007 – 2013)

Harley-Davidson Electra Glide FLHT (FL1) (1999 – 2006)

Harley-Davidson Electra Glide FLHT (FL2) (2007 – 2013)

Harley-Davidson Electra Glide FLHT (FLT) (1990 – 1998)

Harley-Davidson Electra Glide Ultra Limited FLHTK (FL3) (2014 – 2019)

Harley-Davidson Road Glide Custom FLTRX (FL2) (2011 – 2013)

Harley-Davidson Road Glide Custom FLTRX (FL3) (2014 – 2016)

Harley-Davidson Road Glide FLTR (FL1) (1999 – 2006)

Harley-Davidson Road Glide FLTRI (FL1) (2004 – 2006)

Harley-Davidson Road Glide Ultra FLTRU (FL2) (2011 – 2014)

Harley-Davidson Road Glide Ultra FLTRU (FL3) (2014 – 2019)

Harley-Davidson Road King Classic FLHRC (FL1) (1999 – 2006)

Harley-Davidson Road King Classic FLHRC (FL2) (2007 – 2014)

Harley-Davidson Road King Classic FLHRC (FL3) (2014 – 2019)

Harley-Davidson Road King Classic FLHRC (FLT) (1997 – 1999)

Harley-Davidson Road King Classic FLHRCI (FL1) (1999 – 2006)

Harley-Davidson Road King Classic FLHRXS (FL3) (2017 – 2019)

Harley-Davidson Road King CVO FLHRSE (FL3) (2012 – 2016)

Harley-Davidson Road King FLHR (FL1) (1999 – 2006)

Harley-Davidson Road King FLHR (FL2) (2007 – 2013)

Harley-Davidson Road King FLHR (FL3) (2014 – 2019)

Harley-Davidson Road King FLHR (FLT) (1994 – 1999)

Harley-Davidson Road King Police FLHP FL3 (2014 – 2019)

Harley-Davidson Road King Special FLHR (FL3) (2017 – 2019)

Harley-Davidson Ultra Classic Electra Glide CVO FLHTCUSE (FL2) (2008 – 2016)

Harley-Davidson Ultra Glide Classic FI FLHTCUI (FL1) (1999 – 2006)

Harley-Davidson Ultra Glide Classic FLHTCU (FL1) (1999 – 2007)

Harley-Davidson Ultra Glide Classic FLHTCU (FL2) (2008 – 2013)

Harley-Davidson Ultra Glide Classic FLHTCU (FL3) (2014 – 2016)
