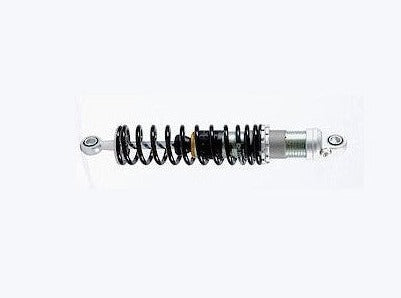

HD207 - ÖHLINS Harley-Davidson Sportster XL1200X (16/20) STX 36 Twin Shock Absorber (280 mm)

STX 36 Twin shock absorber by Ohlins for Harley-Davidson Sportster XL1200X.

Developed for bikes with twin shock absorbers, the Öhlins STX 36 is a classic monotube design, featuring all the classical Öhlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Öhlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	280 mm
Stroke:	68 mm
Rate N/mm:	22 N/mm
Position:	rear
Mounted spring:	66420-022
Packaging unit:	pair

Type Code: S36E

S: Single tube

36: Piston diameter: 36 mm

E: Emulsion type of shock absorber

APPLICATION:

Harley-Davidson SPORTSTER XL 1200 X Forty-Eight (2016 – 2020)
