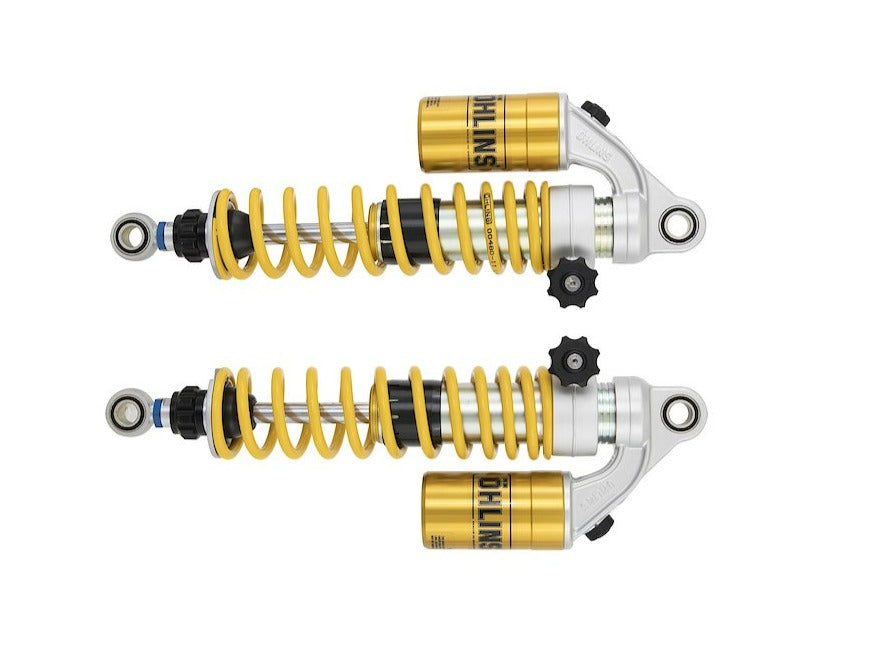

HD852 - ÖHLINS Harley-Davidson XR 1200 / X Sportster Twin Shock Absorber (415 mm / yellow springs)

Twin shock absorber by Ohlins for Harley-Davidson XR 1200 / X Sportster.

Developed for bikes with twin shock absorbers, the Öhlins STX 36 is a classic monotube design, featuring all the classical Öhlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Öhlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	415 +5/-5 mm
Stroke:	98 mm
Rate N/mm:	21-29 N/mm
Position:	rear
Mounted spring:	66394-04
Packaging unit:	pair

Type Code: S36PR1C1L

S: Single tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back”reservoir

R1: Adjustable rebound damping on single tube shocks / adjuster wheel above the end eye

C1: Adjustable compression damping / adjuster wheel or slot on the reservoir

L: Adjustable length

Notes:

Trophy version (long)

APPLICATION:

Harley-Davidson XR 1200 Sportster (2008 – 2013)

Harley-Davidson XR 1200 X Sportster (2010 – 2013)
