HO047 - ÖHLINS Honda MSX125 (20/22) Scooter Shock Absorber

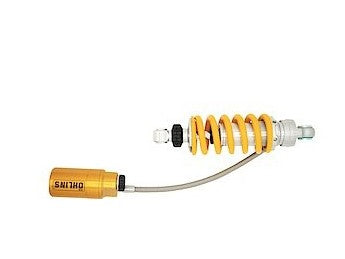

STX 36 Scooter shock absorber by Ohlins for Honda MSX125.

Developed for bikes with scooter shock absorbers, the Öhlins STX 36 is a classic monotube design, featuring all the classical Öhlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Öhlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	244 mm
Stroke:	43 mm
Rate N/mm:	120 N/mm
Position:	rear
Packaging unit:	pieces

Type Code: S36HR1C1

S: Single tube

36: Piston diameter: 36 mm

H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir

R1: Adjustable rebound damping on single tube shocks / adjuster wheel above the end eye

C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir

APPLICATION:

Honda MSX125 (2020 – 2022)

Available from approx. August 2021.
