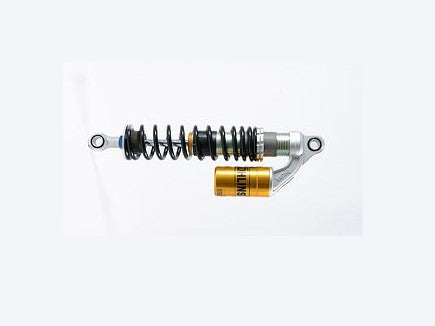

HO142 - ÖHLINS Honda CB400 Super Four Twin Shock Absorber

STX 36 Twin shock absorber by Ohlins for Honda CB400 Super Four.

Developed for bikes with twin shock absorbers, the Öhlins STX 36 is a classic monotube design, featuring all the classical Öhlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Öhlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	330 mm
Stroke:	88 mm
Rate N/mm:	prog.16-26 N/mm
Mounted spring:	00480-02
Packaging unit:	pair

Type Code: S36P

S: Single tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back”reservoir

Notes:

Black springs.

APPLICATION:

Honda CB400 Super Four (1992 – 1993)
