HO204 - ÖHLINS Honda RVT1000R / VTR1000SP1 / SP2 Rear Shock Absorber
HO204 - ÖHLINS Honda RVT1000R / VTR1000SP1 / SP2 Rear Shock Absorber
Regular price
$1,762.00 USD
Regular price
Sale price
$1,762.00 USD
Quantity
Couldn't load pickup availability

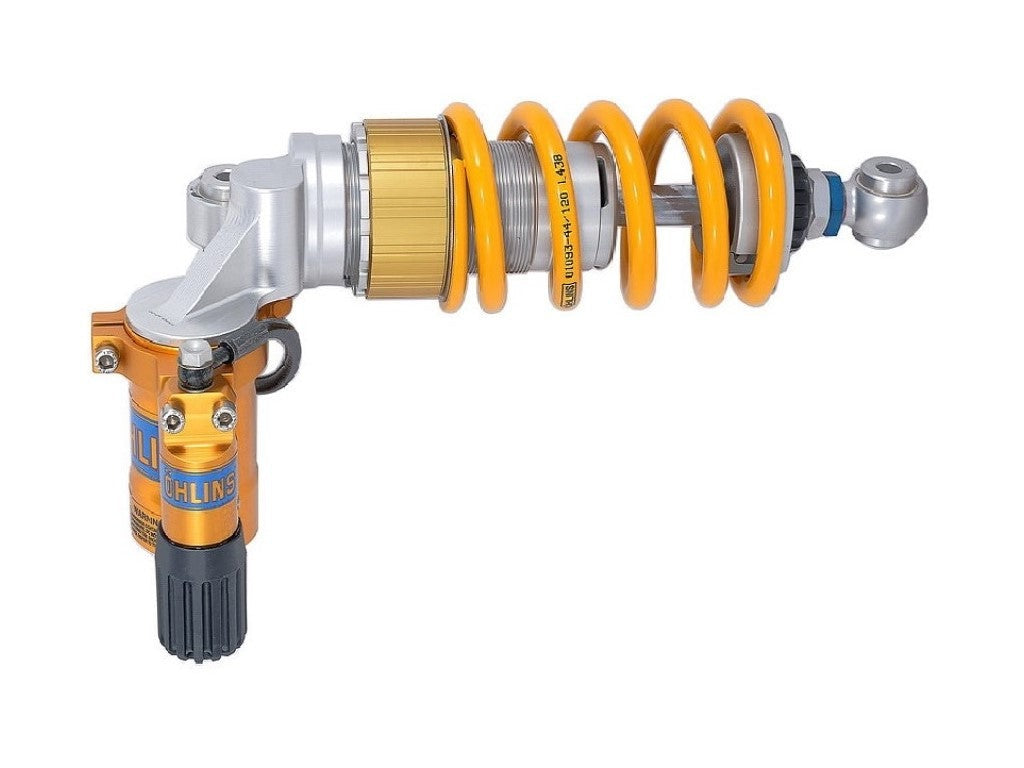

Rear shock absorber by Öhlins for Honda RVT1000R / VTR1000SP1 / SP2 / RC51 (Supersport).
The STX 46 is based on our popular 46 mm shock absorber with divided piston and adjustable rebound damping, developed for naked sports bikes and street performance bikes. It features a large 46 mm main piston and an internal gas reservoir within the main body of the shock.
With adjustable damping you can change the behavior of the shock to suit your taste and even fit a hydraulic spring pre loader to change the stance of the bike. This is the perfect choice for the naked sports bike, or as well call it: Street Performance Line.
🛠 Instructions for installation
| Length: | 326 +10/-2 mm |
|---|---|
| Stroke: | 63 mm |
| Rate N/mm: | 90 N/mm |
| Mounted spring: | 01092-29 |
Type Code: S46PR1C2LS
S: Single tube
46: Piston diameter: 46 mm
P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir
R1: Adjustable rebound damping on single tube shocks / adjuster wheel above the end eye
C2: Adjustable high and low speed compression damping on S46 shocks / Hexagon and slot on the reservoir
L: Adjustable length
S: Hose mounted hydraulic spring preload adjusterAPPLICATION:
Honda RVT1000R (2002 – 2006)Honda VTR1000SP1 / RC51 (2001 – )
Honda VTR1000SP2 / RC51 (2002 – 2006)
