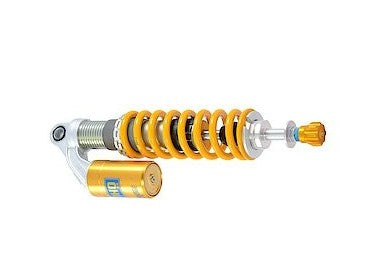

HO430 - ÖHLINS Honda Forza 300 (14/17) Scooter Shock Absorber

STX 36 Scooter shock absorber by Ohlins for Honda Forza 300.

Developed for bikes with scooter shock absorbers, the Öhlins STX 36 is a classic monotube design, featuring all the classical Öhlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Öhlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	400 mm
Stroke:	114 mm
Rate N/mm:	prog. 10-14 N/mm
Position:	rear
Mounted spring:	60480-01
Packaging unit:	pieces

Type Code: S36PR1

S: Single tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir

R1: Adjustable rebound damping on single tube shocks / adjuster wheel above the end eye

APPLICATION:
