HO645 - ÖHLINS Honda XRV750 Africa Twin (93/02) Rear Shock Absorber

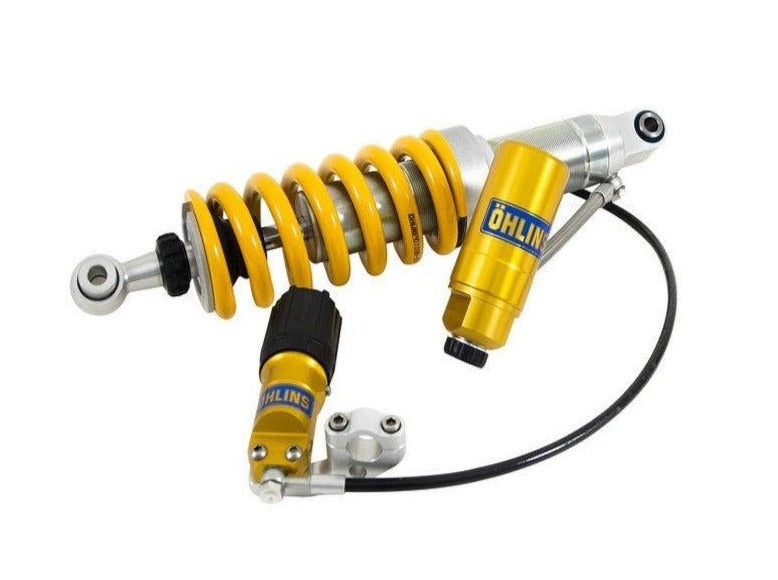

Rear shock absorber by Öhlins for Honda XRV750 Africa Twin (Adventure).

The STX 46 is based on the popular 46 mm shock absorber with divided piston and adjustable rebound damping, developed for naked sports bikes and street performance bikes. It features a large 46 mm main piston and an internal gas reservoir within the main body of the shock.

With adjustable damping you can change the behavior of the shock to suit your taste and even fit a hydraulic spring pre loader to change the stance of the bike. This is the perfect choice for the naked sports bike, or as well call it: Street Performance Line.

📜 Owner's manual

🛠 Instructions for installation

Type Code: S46HR1C1S

S: Single tube

46: Piston diameter: 46 mm

H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.

S: Hose mounted hydraulic spring preload adjuster.

APPLICATION:

Honda XRV750 Africa Twin (1993 – 2002)
