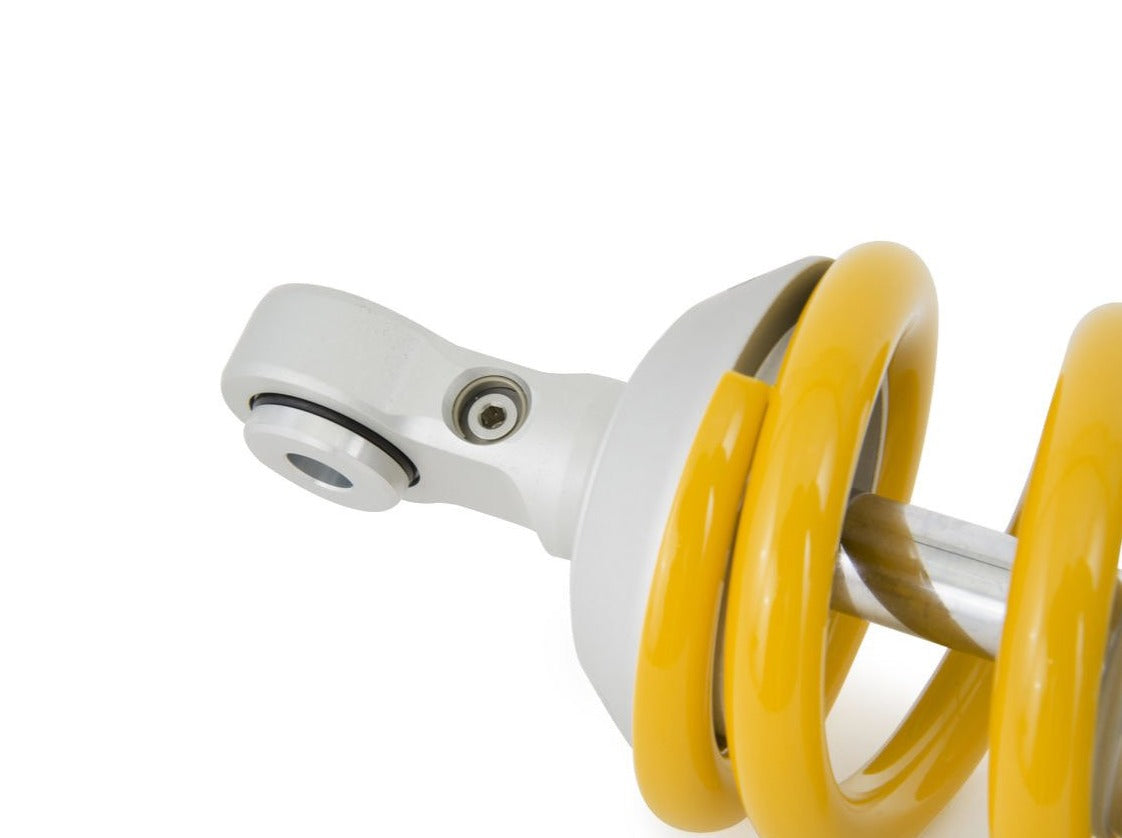

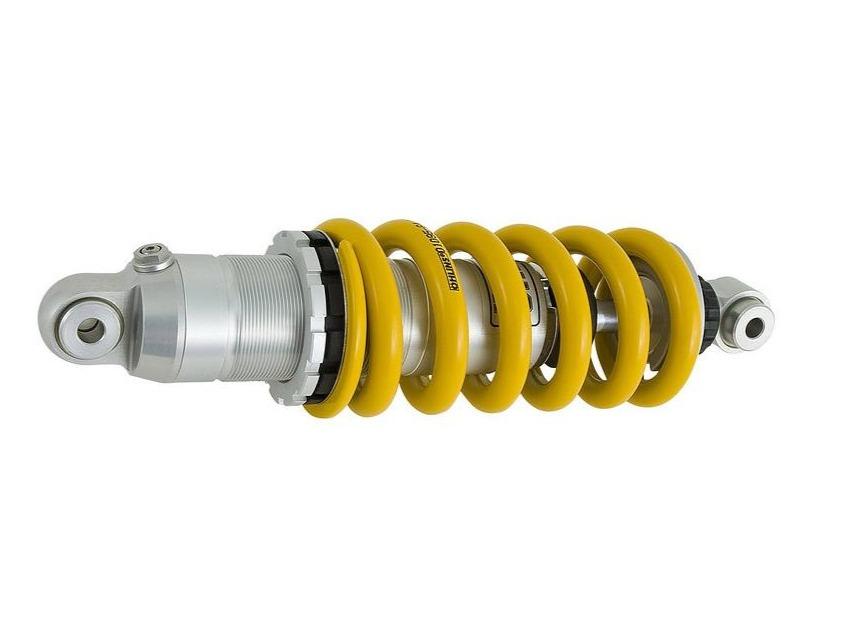

HO820 - ÖHLINS Honda CRF150L (17/22) Adventure Shock Absorber (STX 36)

Adventure Shock Absorber by Ohlins for Honda CRF150L.

Öhlins well proven STX 36 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 36 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

📜 Owner's manual

🛠 Instructions for installation

Technical data:

Length:	387 mm
Stroke:	76 mm
Rate N/mm:	85 N/mm
Position:	rear
Mounted spring:	60294-20
Packaging unit:	pieces

Type code: S36DR1

S: Single tube

36: Piston diameter: 36 mm

D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body

R1: Adjustable rebound damping on single tube shocks

Notes:

Yellow spring.

APPLICATION:

Honda CRF150L (2017 – 2022)
