HO821 - ÖHLINS Honda CBR500R (13/18) Rear Shock Absorber (STX 46 Supersport)
HO821 - ÖHLINS Honda CBR500R (13/18) Rear Shock Absorber (STX 46 Supersport)
Regular price
$1,101.00 USD
Regular price
Sale price
$1,101.00 USD
Quantity
Couldn't load pickup availability

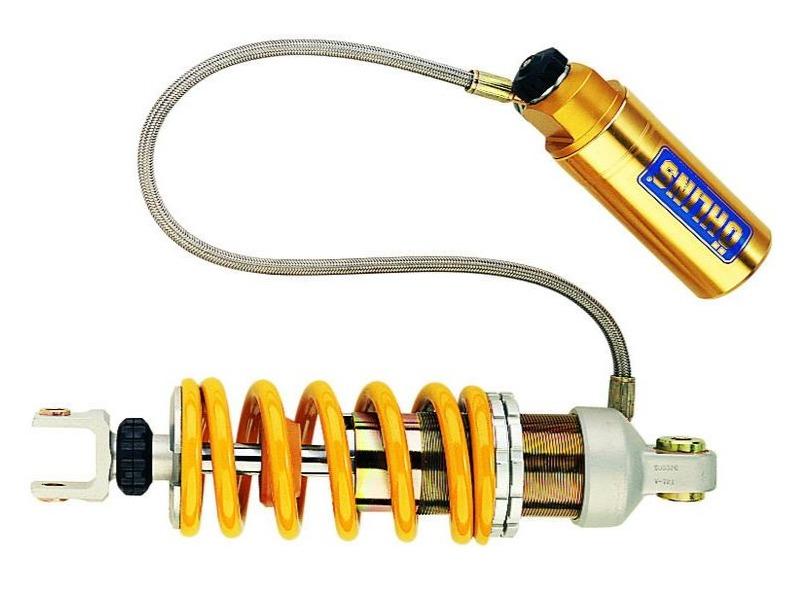

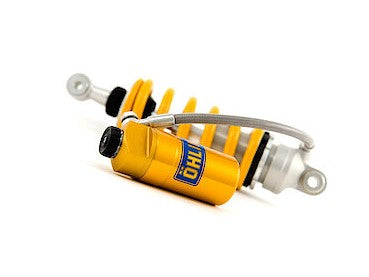

STX 46 Supersport shock absorber by Ohlins for Honda CBR500R.
Öhlins well proven STX 46 Supersport series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.
🛠 Instructions for installation
| Length: | 307 +8/-3 mm |
|---|---|
| Stroke: | 55 mm |
| Rate N/mm: | 110 N/mm |
| Position: | rear |
| Mounted spring: | 61093-39 |
| Mounting length min/max: | 304/315 |
| Packaging unit: | pieces |
Type Code: S46HR1C1L
S: Single tube
46: Piston diameter: 46 mm
H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir
L: Adjustable length
APPLICATION:
Honda CBR500R (2013 – 2016)
Honda CBR500R (2017 – 2018)
