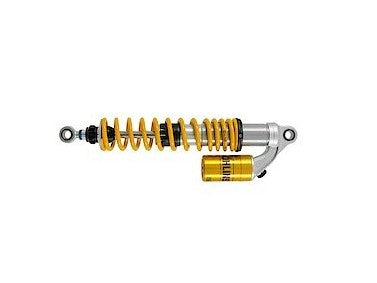

HO831 - ÖHLINS Honda Click 150i Asia (2018+) Scooter Shock Absorber

STX 36 Twin shock absorber by Ohlins for Honda Click 150i Asia.

Developed for bikes with twin shock absorbers, the Öhlins STX 36 is a classic monotube design, featuring all the classical Öhlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Öhlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	333 mm
Stroke:	85 mm
Rate N/mm:	31-35 N/mm
Position:	rear
Mounted spring:	60360-08
Packaging unit:	pieces

Type Code: S36PR1C1

S: Single tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back”reservoir

R1: Adjustable rebound damping on single tube shocks / adjuster wheel above the end eye

C1: Adjustable compression damping / adjuster wheel or slot on the reservoir

Notes:

The motorcycle rear mudguard needs to be exchanged or modified to fit to the ÖHLINS shock absorber HO 831

APPLICATION:

Honda Click 150i Asia (2018)
