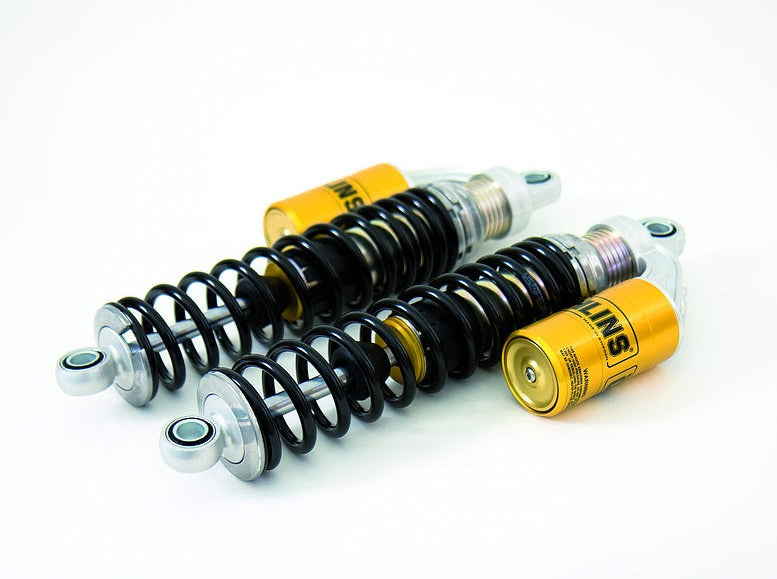

KA140 - ÖHLINS Kawasaki Twin Shock Absorber (STX 36)

STX 36 Twin shock absorber by Ohlins for Kawasaki model.

Developed for bikes with twin shock absorbers, the Öhlins STX 36 is a classic monotube design, featuring all the classical Öhlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Öhlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	347 mm
Stroke:	92 mm
Rate N/mm:	prog.18-27 N/mm
Position:	rear
Mounted spring:	00480-03
Packaging unit:	pair

Type Code: S36P

S: Single tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back”reservoir

Notes:

Black springs.

APPLICATION:

Kawasaki Street Line ( – )

Kawasaki Z750GP (1982 – 1986)

Kawasaki Z900 (1973 – 1976)

Kawasaki Zephyr 1100 (1992 – 2001)
