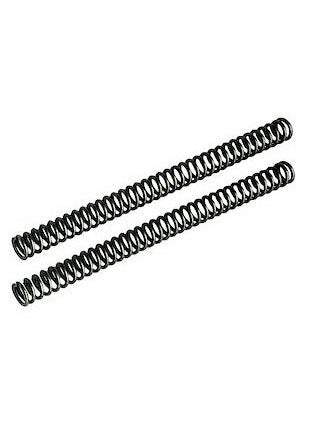

ÖHLINS Harley-Davidson Front Fork Springs
ÖHLINS Harley-Davidson Front Fork Springs
Couldn't load pickup availability
Front fork springs by Ohlins for Harley-Davidson models.
Exchanging the front fork springs is one of the most cost effective way to improve the bike's front fork. Together with the specifically developed high-quality oil from Öhlins, a considerable improvement in the responsiveness and performance of an original fork can be achieved.
Öhlins offers a wide range of linear springs to suit each individual type of bike, rider weight and personal preferences for installation into the standard front fork. Well chosen material and high-end manufacturing guarantee less the 1,5% difference regarding spring rate.
🛠 Instructions for installation
| Length: | 247 mm |
|---|---|
| Rate N/mm: | 13,0 N/mm |
| Position: | front |
| Recommended oil: | 01309 |
| Oil level mm: | 80 |
| Packaging unit: | kit |
Notes:
This front fork spring kit is for lowering the cartridge kit FKC 102.
The lowering will be ca. 25mm.
Springs with 13 N/mm rate are included in the package.
It is recommended to contact an authorised ÖHLINS Service Center for installation.
APPLICATION:
Harley-Davidson models (2014 – 2016)
