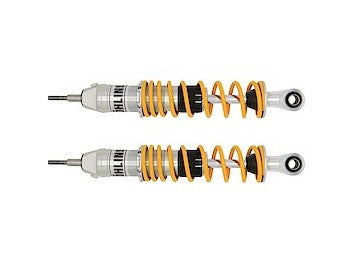

PI903 - ÖHLINS Vespa GTS 150 / 300 (19/22) Rear Scooter Shock Absorber

Rear Scooter shock absorber by Ohlins for Vespa GTS 150 / 300.

Developed for bikes with scooter shock absorbers, the Öhlins STX 36 is a classic monotube design, featuring all the classical Öhlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Öhlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	RH 324 LH 328 mm
Stroke:	RH 84; LH 88 mm
Rate N/mm:	prog. 14,2-21,1 N/mm
Position:	rear
Mounted spring:	60360-03
Packaging unit:	pair

Type Code: S36E

S: Single tube

36: Piston diameter: 36 mm

E: Emulsion type of shock absorber

Notes:
Optional Spring 60360-04 is included in the product content.

APPLICATION:

Vespa GTS 150 (2019 – 2022)

Vespa GTS 300 (2019 – 2022)
