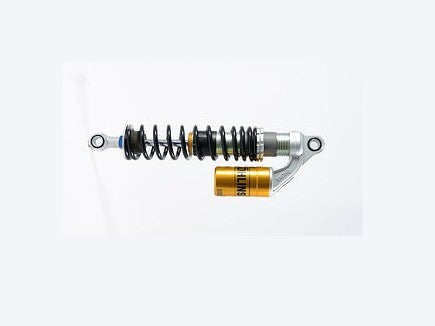

SU143 - ÖHLINS Suzuki Rear Shock Absorber (STX 36 Twin)

STX 36 Twin shock absorber by Ohlins for Suzuki models.

Developed for bikes with twin shock absorbers, the Öhlins STX 36 is a classic monotube design, featuring all the classical Öhlins qualities delivering top notch performance for your street bike. Available in emulsion, piggyback or hose versions, depending on application, it can also be specified with a number of different damping adjustment options with or without length adjustment. Suitable for any application from cruisers to café racers, the STX 36 shocks are one of Öhlins most successful designs of all times.

📜 Owner's manual

🛠 Instructions for installation

Length:	331 mm
Stroke:	83 mm
Rate N/mm:	prog.18-27 N/mm
Position:	rear
Mounted spring:	00480-03
Packaging unit:	pair

Type Code: S36P

S: Single tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back”reservoir

Notes:

Black springs.

APPLICATION:

Suzuki GS1000E (1979 – 1982)

Suzuki GS1000H (1979 – 1982)

Suzuki GS1000L (1979 – 1982)

Suzuki GS1000S (1979 – 1982)

Suzuki GS750E (1977 – 1984)

Suzuki GS750L (1977 – 1981)

Suzuki GS750S (1979 – 1984)

Suzuki GSX1100 (1979 – 1983)

Suzuki GSX1100 Katana (1981 – 1983)

Suzuki RE-5 (1975 – 1977)
