Ohlins

SU406 - ÖHLINS Suzuki GSX1300R Hayabusa (99/07) Rear Shock Absorber

SU406 - ÖHLINS Suzuki GSX1300R Hayabusa (99/07) Rear Shock Absorber

$1,696.00 USD
$1,696.00 USD
Sale Sold out

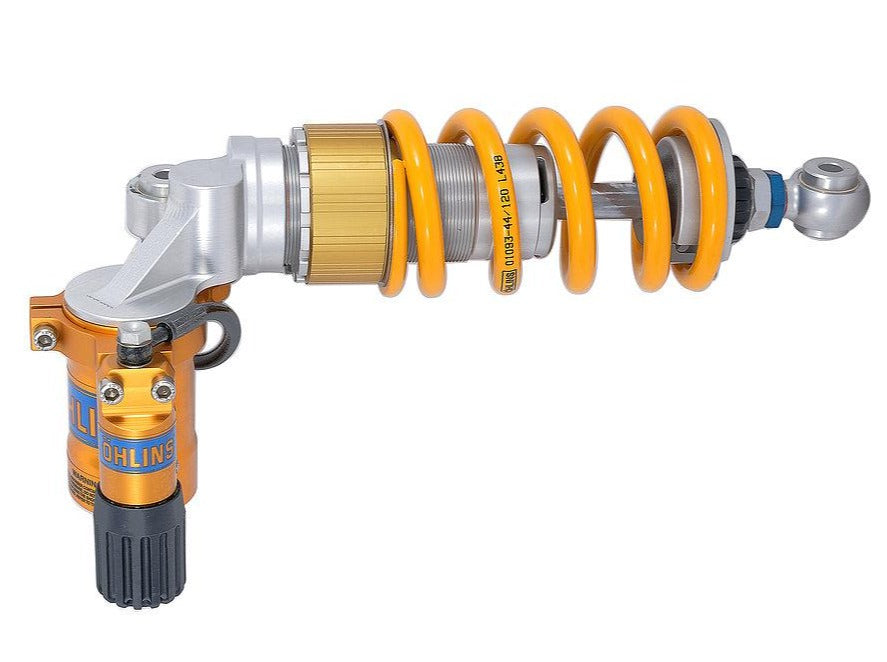

Rear shock absorber by Öhlins for Suzuki GSX1300R Hayabusa.

📜 Owner's manual

🛠 Instructions for installation

Length: 330 +10/-0 mm
Stroke: 68 mm
Rate N/mm: 115 N/mm
Mounted spring: 01092-41


Type Code: S46PR1C2LS

Single tube S: Single tube

Piston diameter 46: Piston diameter: 46 mm

Öhlins Motorcycle type P P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

Öhlins Motorcycle R1 rebound damping adjuster R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

Öhlins Motorcycle S46 C2 compression damping adjuster high and low speed C2: Adjustable high and low speed compression damping on S46 shocks. Hexagon and slot on the reservoir.


Öhlins Motorcycle L L: Adjustable length.


Öhlins Motorcycle S S: Hose mounted hydraulic spring preload adjuster.

APPLICATION:

Suzuki GSX1300R Hayabusa (1999 – 2007)
View full details
