SU503 - ÖHLINS Suzuki GSX-R1000 (05/06) Rear Shock Absorber

SU503 - ÖHLINS Suzuki GSX-R1000 (05/06) Rear Shock Absorber

$1,759.00 USD
$1,759.00 USD
Sale Sold out

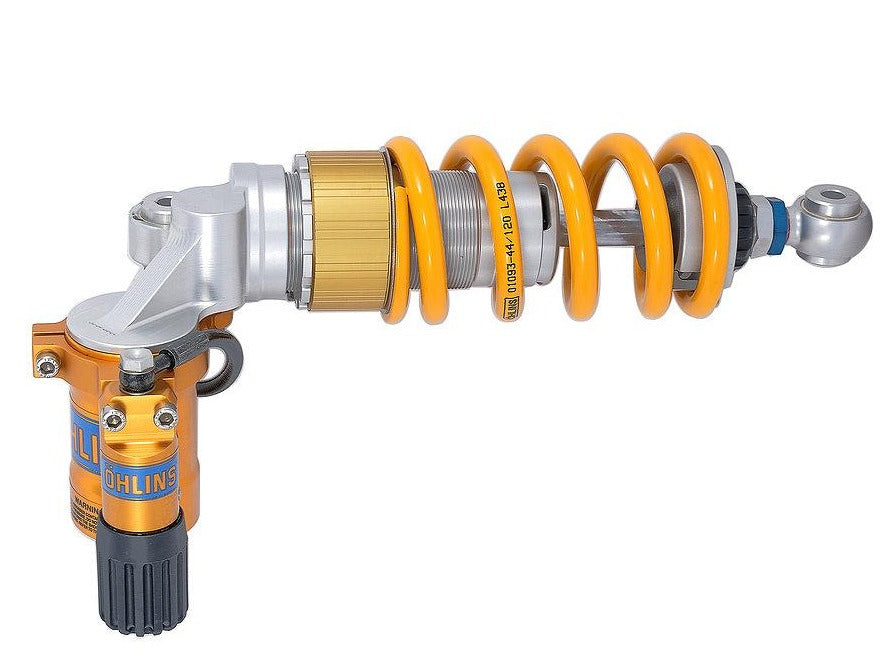

Rear shock absorber by Öhlins for Suzuki GSX-R1000.

📜 Owner's manual

🛠 Instructions for installation

Length: 325,5 +6/-0 mm
Stroke: 70 mm
Rate N/mm: 90 N/mm
Mounted spring: 01093-2

Type Code: S46PR1C2LS

Single tube S: Single tube

Piston diameter 46: Piston diameter: 46 mm

Öhlins Motorcycle type PP: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

Öhlins Motorcycle R1 rebound damping adjuster R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

Öhlins Motorcycle S46 C2 compression damping adjuster high and low speed C2: Adjustable high and low speed compression damping on S46 shocks. Hexagon and slot on the reservoir.


Öhlins Motorcycle L L: Adjustable length.

Öhlins Motorcycle S S: Hose mounted hydraulic spring preload adjuster.

APPLICATION:

Suzuki GSX-R1000 (2005 – 2006)
