YA335 - ÖHLINS Yamaha MT-09 / Tracer 900 / XSR900 Rear Shock Absorber

YA335 - ÖHLINS Yamaha MT-09 / Tracer 900 / XSR900 Rear Shock Absorber

$732.00 USD
$732.00 USD
Sale Sold out

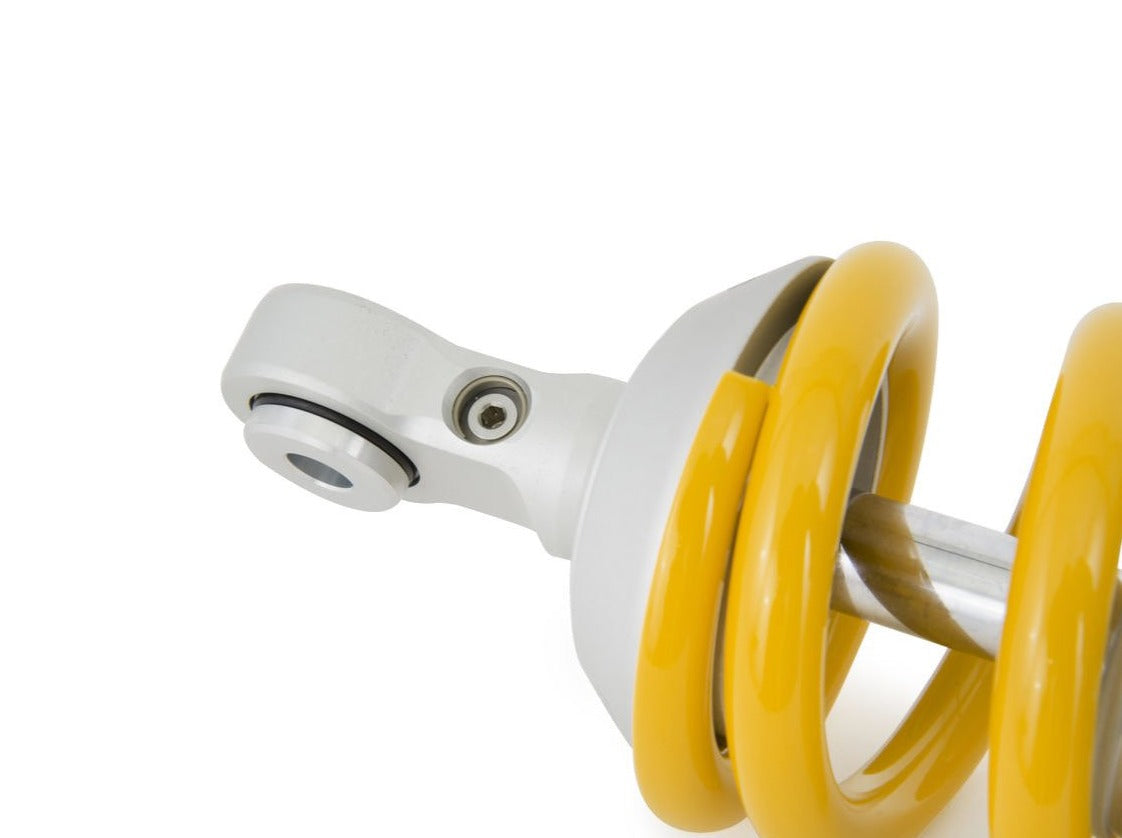

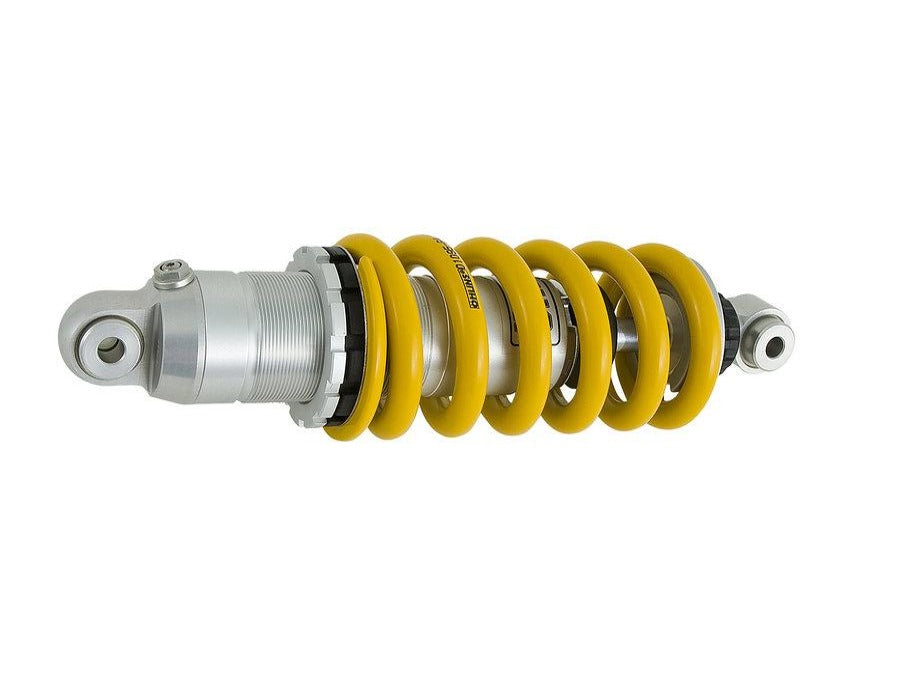

Rear shock absorber by Öhlins for Yamaha MT-09 / Tracer 900 / XSR900.

    Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes.

    This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston.

    Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

    📜 Owner's manual

    🛠 Instructions for installation

    Length: 329 mm
    Stroke: 65 mm
    Rate N/mm: 95 N/mm
    Mounted spring: 01092-31

    Type Code: S46DR1

    Single tube S: Single tube

    Piston diameter 46: Piston diameter: 46 mm

    Öhlins Motorcycle type D D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

    Öhlins Motorcycle R1 rebound damping adjuster R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

    APPLICATION:

    Yamaha MT-09 / FZ-09 (2014 – 2020)

    Yamaha TRACER 900 (2015 – 2017)

    Yamaha XSR900 (2016 – 2021)
