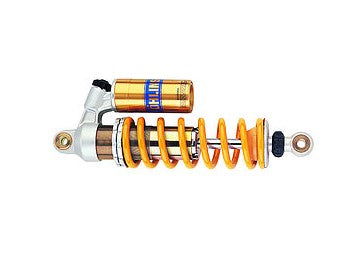

YA817 - ÖHLINS Yamaha XT660Z Ténéré (08/12) Adventure Shock Absorber (STX 46, without ABS)

Adventure shock absorber by Öhlins for Yamaha XT660Z Ténéré.

The design is well proven, features a large 46 mm piston delivering reliable performance in all possible environments. Available in a wide range of configurations, with piggyback or hose mounted reservoir and with or without spring preload adjuster, the STX 46 can be made to fit in virtually any mounting space no matter what the constraints are. The STX 46 is available for most major models in the adventure segment.

📜 Owner's manual

🛠 Instructions for installation

Type Code: S46PR1C1

S: Single tube

46: Piston diameter: 46 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye

C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.

APPLICATION:

Yamaha XT660Z Ténéré (2008 – 2012)
