YA819 - ÖHLINS Yamaha XT700 Ténéré World Raid (2022+) Rear Shock Absorber
YA819 - ÖHLINS Yamaha XT700 Ténéré World Raid (2022+) Rear Shock Absorber
Regular price
$1,426.00 USD
Regular price
Sale price
$1,426.00 USD
Quantity
Couldn't load pickup availability

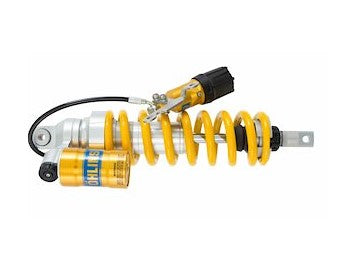

Rear shock absorber by Öhlins for Yamaha XT700 Ténéré World Raid.
The classic monotube design of the Öhlins STX 46 shock absorber is a major upgrade to most bikes in the adventure segment. The design is well proven, features a large 46 mm piston delivering reliable performance in all possible environments. Available in a wide range of configurations, with piggyback or hose mounted reservoir and with or without spring preload adjuster, the STX 46 can be made to fit in virtually any mounting space no matter what the constraints are. The STX 46 is available for most major models in the adventure segment.
🛠 Instructions for installation
| Length: | 385mm mm |
|---|---|
| Stroke: | 100mm mm |
| Rate N/mm: | 75 N/mm |
| Position: | rear |
| Mounted spring: | 00580-21 |
Type Code: S46PR1C1S
S: Single tube
46: Piston diameter: 46 mm
P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
S: Hose mounted hydraulic spring preload adjuster.APPLICATION:
Yamaha XT700 Ténéré World Raid (2022 – )
